Fiber Laser Cutting Machine Cost
|Terms of Trade:||FOB,CFR,CIF,EXW|
|Min. Order:||1 Set/Sets|
|Delivery Time:||20 Days|
|Productivity:||50~100 sets per month|
|Place of Origin:||Shandong, China|

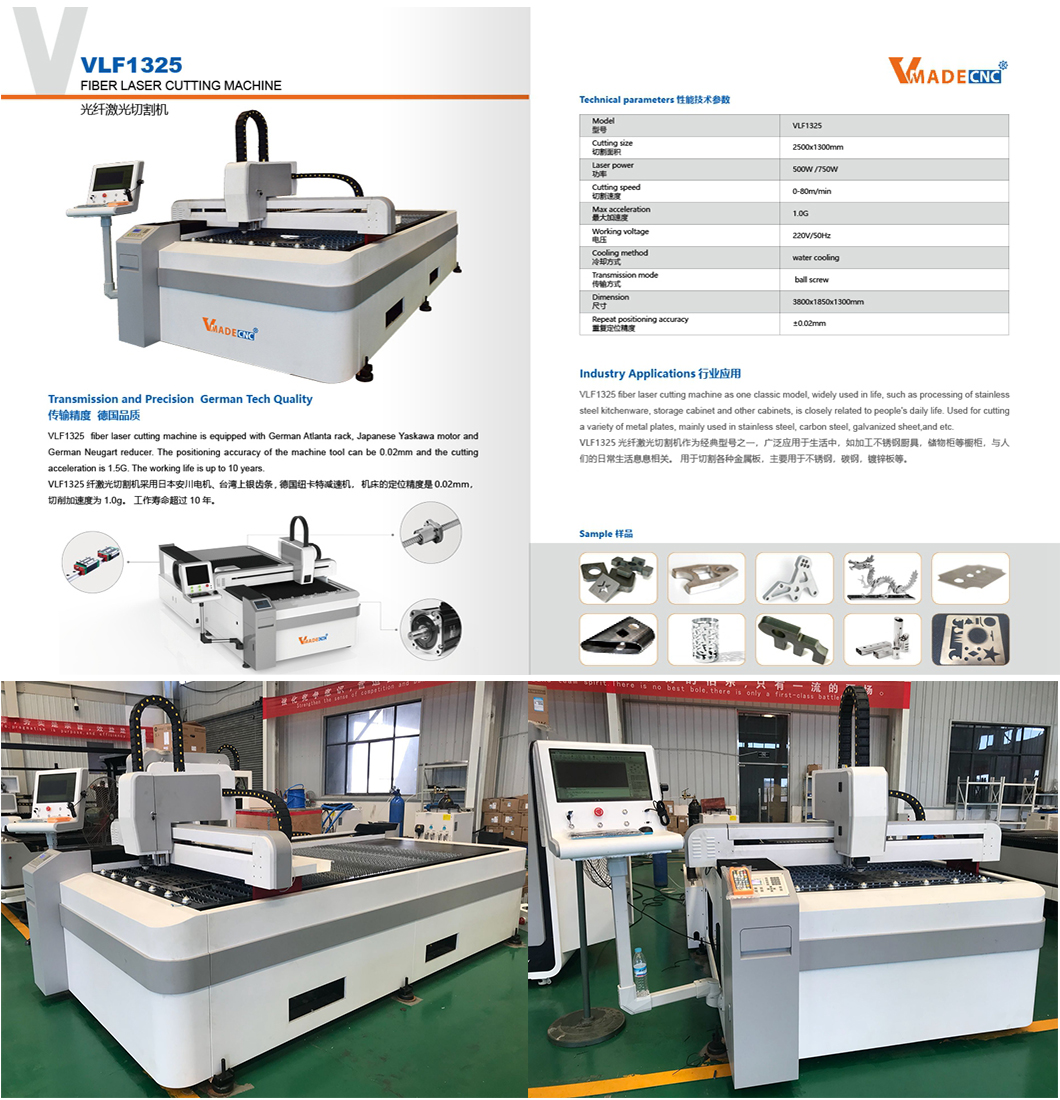

Model No.: VLF1325
Fiber Laser Cutting Machine Cost
HS CODE: 8456110090
After-sales Service Provided:Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support whole lifetime.
Applicable Material: Metal Industry
Laser Type:Fiber Laser
Laser Source Brand: China Raycus
Laser Head Brand: Switzerland Raytools Bm109
Servo Motor Brand:Japan Yaskawa Servo Motor and Driver
Rack and gear brand:Taiwan Apex
Key Selling Points:Multifunctional, High accuracy, Durability
Optical Lens Brand:Wavelength
Guide rail:Taiwan Hiwin
Cutting Area: 1300x2500mm
Machine Weight: 3.5tons
Max Speed, Max linkage speed(x,y):Max 120m/min
X Y axis max positioning speed : 160m/min
Cutting Thickness: Max 11 MM
Graphic Format Supported:AI, DXF, PLT, BMP, DST, DWG, LAS, DXP
Applicable Industries:Building Material Shops, Machinery Repair Shops, Retail,
Construction works , Advertising Company
Cooling Mode:Water Cooling
Warranty:3 years on machine and laser (except Consumable parts)
Max loading weight: 800KG
Z Axis running range:100mm
(1) High photo-voltaic conversion rate (above 30%), which helps to save electricity and costs greatly to guarantee the highest production efficiency.
(2) When processing, the laser only consumes electricity and doesn't need extra gas(only auxiliary gas ), bringing the minimum operation and maintenance costs.
(3) Adopting semiconductor modular and redundancy design, without any optical glass in resonant cavity and without start time, so it is in high stability and doesn't need adjusting and maintaining, which saves the
costs and time. In this point, the traditional laser is not comparable.
(4) The output wavelength of fiber laser is 1.06μm, which is a tenth of CO2 wavelength. The output beam is in high quality and power density, so it is easy to be absorbed by metal materials and therefore has great power to cut and weld to make the lowest processing costs.
|Laser Power||1000W /1500W/2000W|
|Cooling Method||water cooling|
|Transmission Mode||Taiwan TBI ball screw|
|Repeat Positioning Accuracy||±0.02mm|
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City, Shandong Province of China. It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers. These years, Vmade has sold their products to all over the world. Such as USA, Canada, Brazil, Russia, England, Australia, more than 60 countries and do OEM service to more than 15 dealers and distributors. Vmade is warmly welcomed by customers with their continuously enthusiasm, Frist-Class before/after sales service, efficient reaction and the perfect machine quality.The name of Vmade originate from most of the buyers' expectation. "V", means the VIP design and production which specially customized to each client; "made", means we use hundred percentage of our attention to focus on every order, finalized all clients' entrust with perfect products which are elaborate made.Vmade CNC, keep innovation, with high passion, to provide perfect project for every client. Welcome join Vmade, we will never let you down!
1. Professional and free after-sales training
Our company has the professional after-sales technical team , providing customers prompt door-to-door or online technical guidance, which can ensure customers are skilled in the equipment application in a short time . At the same time , after-sales technical team would visit customers regularly ,asking customers the using of equipment and upgrade the software of equipment for customers.
2. After-sales outlets are all over the world
Our company has global customer service center , it has 16hours/day online customer service, which can solve all kinds of problems for domestic and foreign customers, our customer service will feedback problems to technical department and productive department,which would give you a satisfactory process of solving problem , ensuring constantly creation of money for you.
3. The feedback of customer satisfaction survey
Company 's after-sales service and technical department will visit customers regularly , inquiring your degree of satisfaction about the equipment and service , we would form proposal according to customer's feedback, the aim of it is finding continuous improvement.
4. The warranty commitment of equipment
The machine's warranty is on three years( not including optical devices and quick-wear parts), except that ,control software is free to upgrade . At the same time ,we guarantee that we will give you the most satisfactory answer for your question whether it is inside or outside of the machine..
1.What is fiber laser?
A fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped. This is done by coupling the
radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power.
What's material can fiber laser cut?
All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
2.Which fiber source does Vmade applied?
IPG - Made in USA.
Raycus- Made in China;
Maxphotonics - Made in China;
3.What is Vmade Fiber laser advantages?
>Excellent beam quality (light-concentrating beam from optical fiber)
>Simple , compact, electrically and optically efficient (small footprint and low power consumption by fiber amplification)
>Compatibly powerful and reliable (realized by high brightness, high power semiconductor lasers as pumping light)
>Maintenance free (the entire optical fiber setups without lenses, mirrors)
>multilingual, more than 11 foreign languages
>3 years warranty .
4.What's the function of fiber laser?
Fiber Laser is only used to cut metals like Stainless Steel, Carbon/Mild Steel, Galvanized Steel, etc. Non-metal is not ok.
5.What's the max. cutting thickness?
Cutting thickness is related to laser power.
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
3000W: 10mm stainless steel, 20mm carbon steel, 10mm aluminum, 7mm brass, 4mm copper
4000W: 12mm stainless steel, 22mm carbon steel, 10mm aluminum, 10mm brass, 6mm copper
Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.
Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
If you have any questions, Please contact us.
Jinan Vmade CNC Machine Co.,Ltd
Jinan Vmade CNC Machine Co.,Ltd. Located in high-tech zone, Jinan City, Shandong Province of China. It is a professional team which specialized in production and marketing of laser machine ,cnc router machine and related technology field.Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers.
These years, Vmade has sold their products to all over the world. Such as USA, Canada, Brazil, Russia, England,
Australia, more than 100 countries and do OEM service to more than 50 dealers and distributors. All machines passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001.
Vmade is warmly welcomed by customers with their continuously enthusiasm, Frist-lass before/after sales service, efficient reaction and the perfect machine quality.
The name of Vmade originate from most of the buyers expectation.[ "V", means the VIP design&service , Made for you , which specially customized to each client; [made", means we use hundred percentage of our attention to focus on every order, finalized all clients` entrust with perfect products which are elaborate made.
Vmadekeep innovation, with high passion, to provide perfect project for every client.
Vmade will keep on focusing on research and manufacturing ,to be benchmark of China`s high-end mechanical intelligent manufacturing industry .
- Company Name: Jinan Vmade CNC Machine Co.,Ltd
- Representative: WANG GUI LING
- Product/Service: Fiber Laser Cutting Machine , Laser Marking Machine , CO2 Laser Machine , Dot Pen Marking Machine , Wood CNC Router Machine , CNC Plasma Cutting Machine
- Capital (Million US $): USD$ 50 MILLION
- Year Established: 2009
- Total Annual Sales Volume (Million US $): US$2.5 Million - US$5 Million
- Export Percentage: 91% - 100%
- Total Annual Purchase Volume (Million US $): Below US$1 Million
- No. of Production Lines: 10
- No. of R&D Staff: 11 -20 People
- No. of QC Staff: 21 -30 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 1,000-3,000 square meters
- Factory Location: Western of Chunhui Road , Suncun Industrial Park ,Jinan City , Shangdong province , China
- Contact Person: Ms. Ella
- Tel: 86-0531-88971992
